The high-output multitool

From crisp white light and vibrant colors to soft, subtle pastels – with an impressive output of 21,000 lumens and a continuously adjustable CRI of up to 93 (+/-3), the M15 delivers brilliant, even illumination across the entire color spectrum.

Equipped with a 1,000 W multispectral LED and a versatile zoom range of 5.2°–54°, the M15 gives lighting designers the creative freedom, exceptional light quality, and extensive color palette they need to bring their visions to life. Whether in a permanent installation or out on tour, the M15 delivers outstanding performance every time.

M15 Profile – limitless versatility for lighting creations of the highest quality.

Optics and light source

1,000 W RGBAL LED module
21,000 lm Output; CRI 93 (+/-3); TM-30 Rg: 109 (+/-3), TM-30 Rf: 91 (+/-3)
Highly-efficient optical system with perfect projection properties, featuring 13 coated anti-reflection lenses
Light-emitting lens Ø 135 mm
> 20,000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
Zoom range: 5.2° – 54° (1:10.4)

Effects

2 gobo wheels each with 6 rotatable, positionable and replaceable
gobos + open
CMY-, RGB- and RGBAL color mixing
Pre-programmed white-light color temperatures: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K and 8000 K
Variable, continuously adjustable CRI 93 (+/-3)
Framing module with 4 blades, module can be rotated by 130° (+/-65°), each blade can be rotated individually by +/-30
Virtual green/magenta correction to adapt to the surrounding light
Virtual CTC adjustment: all light colors 2000 K – 13000 K
2 frost filters (soft edge, 1°, flood frost, 5°), infinitely retractable and combinable – can be replaced by JB click system, other frost levels available as options: 2°, 3.5°, 10°, 20°
2 prisms, 3-section circular and 5-section linear, rotatable and indexable
Motorised, infinitely adjustable high-speed iris with 18 fins
Electronic dimmer 0 – 100%, 3 selectable dimming curves
Electronic shutter with pre-programmed pulse and ramp functions
Animation effect / sparkle effect
Focus system with auto-focus function

Movement

High-resolution, high-performance 3-phase stepper motors with high-precision ring magnet encoders
Precise, very fast and silent movement
540° pan / 280° tilt

Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/Slave function
Follow Mode ready with attachable handles (accessory)
Error analysis and DMX analysis
Ethernet in/out with bypass function switch 10/100 Mbps

Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Transport lock for pan/tilt
Prepared for mechanical path limitation for narrow installation spaces
High-tech heat pipe cooling in conjunction with calibrated silent fans for almost noiseless operation at max. 29 dB(A)
Neutrik 5pin XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT

Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options

Electrical & thermal specification

Maximum power consumption 1,100 VA
Supply voltage 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 3,753 BTU/h
Ambient temperature: 0 to +40° (note the warm-up phase)

Mechanical specification

Dimensions: W 421 x D 264 x H 682 mm
Weight: 24 kg
LWR specification: (LWR = Lumen to Weight Ratio): 875 lm/kg

Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets

Warranty

Device: 2 years
LED module: 4 years

Accessories

ZU0029 Path limitation

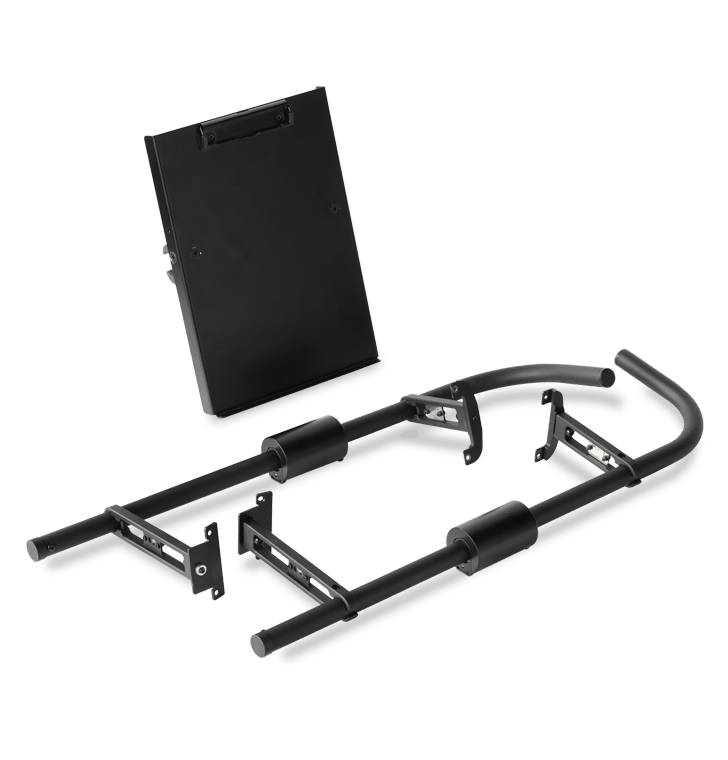

ZUV151 Chaser bracket for Follow Mode
ZUV001 Counterweight for chaser bracket
ZUV002 Air deflector, including clamping device

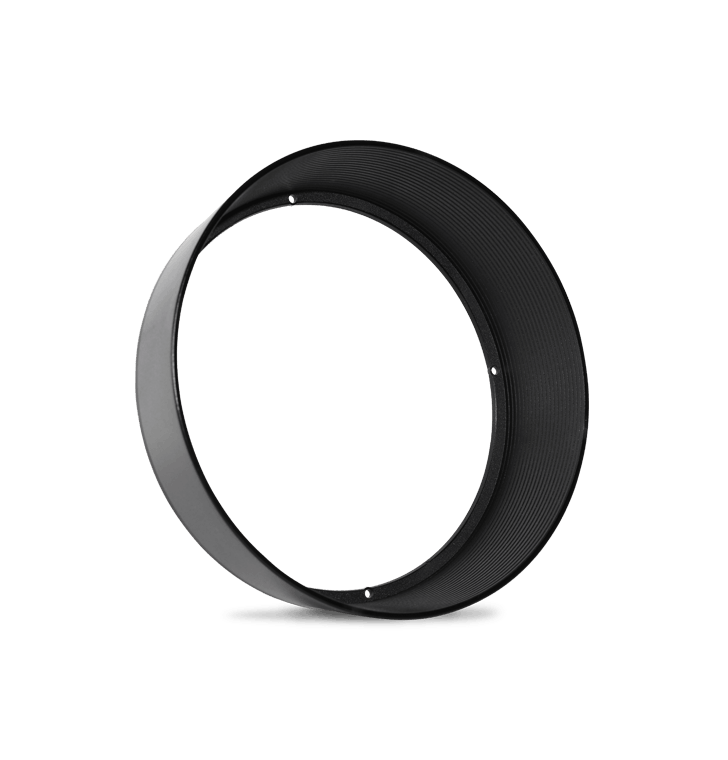

JBK0322 Lens hood

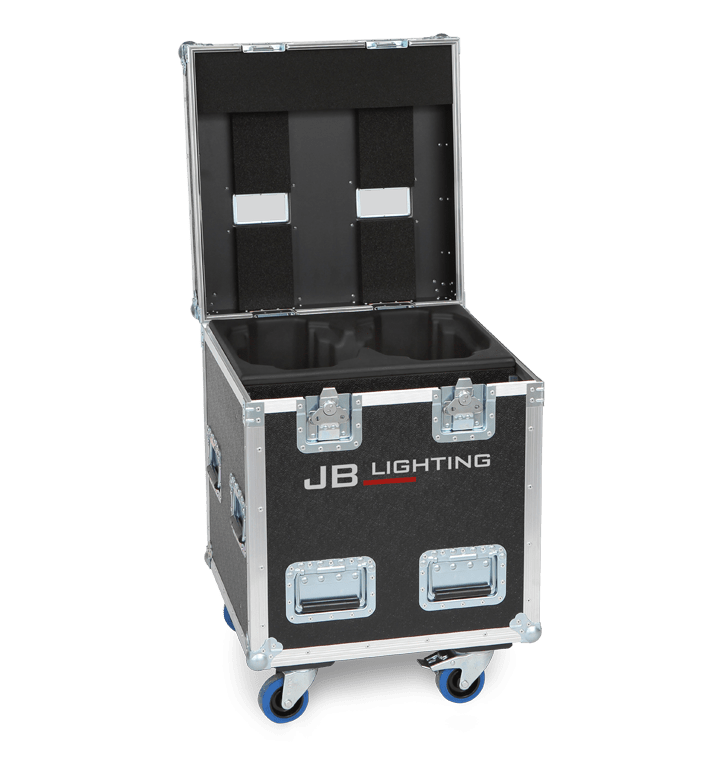

CASE38 AMPTOWN double flight case

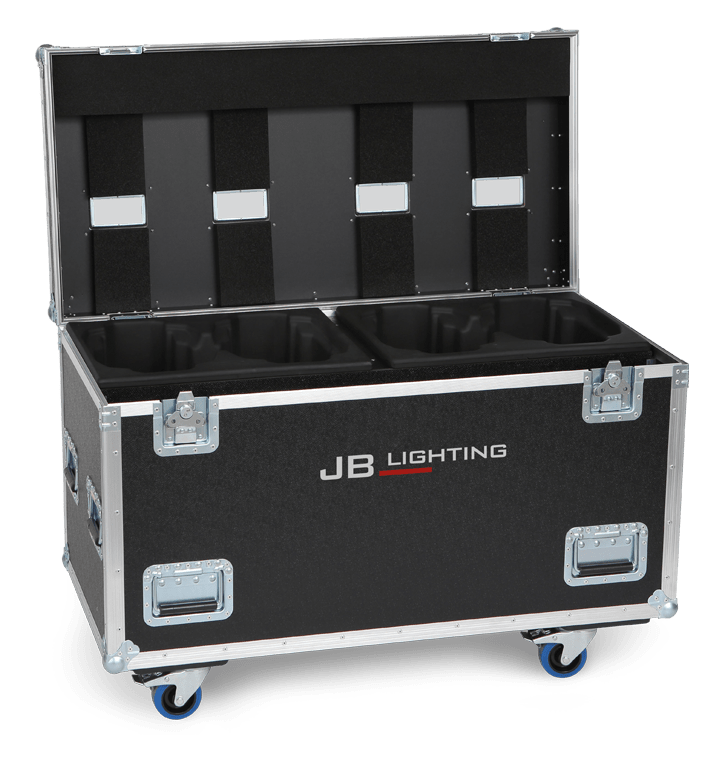

CASE39 AMPTOWN 4-compartment flight case

M15 Profile request

Downloads

Catalogue

Brilliant Color Versatility

The M15 Profile features a five-color LED engine combining Red, Green, Blue, Amber, and Lime. This significantly expands the color gamut compared to conventional white-light fixtures, delivering exceptionally precise color mixing with impressive brightness and intensity. From rich, saturated colors and delicate pastels to a wide range of whites from 2000 to 13000 K, the M15 brings every shade to life. Its highly efficient optical system ensures outstanding center-to-edge uniformity and crisp, well-defined mid-air effects. Whether using the extended RGBAL color gamut or the virtual CTC channel, patented brightness optimization technology ensures brilliant output across the entire color spectrum.

Extended RGBAL Color Gamut

Virtual CTC Channel: 2000 – 13000 K

The M15 combines precise color mixing with exceptional color versatility and brightness.

Adjustable CTC meets high CRI – for outstanding white-light quality.

FRAMING MODULE

In the M15 Profile, the framing module features the JB-typical 4-level blade mechanism, in which each blade is guided separately. Compared to the 2-level mechanism, this allows them to be superimposed exactly parallel to one another and adjusted with great precision. All blades can be freely rotated and positioned, and can be retracted throughout the entire working range (+/-30°). This enables quick, precise retraction with minimal light loss, even at steep illumination angles. The entire framing module can also be rotated continuously through 130° (+/-65°).

ZOOM RANGE

With its highly efficient optical system, the M15 Profile produces impressively uniform and well-defined beams across the entire zoom range of 5.2 – 54°.

Minimum zoom, 5,2°

Maximum zoom, 54°

FROST FILTERS

Using two continuously adjustable and combinable frost filters (1°, 5°), it is possible to create specific blurred beam edges. Additional frost settings are available as options: 2°, 3.5°, 10°, 20°.

Without Frost

Soft edge, 1°

Flood frost, 5°

PRISMS

The gobos on the P15 Profile can be combined with a circular 3-section prism or a linear 5-section prism and rotate at different speeds.

5-section prism (linear)

3-section prism (circular)

JB PLUG-IN TECHNOLOGY

All inserts in JB devices can be removed quickly and easily for servicing and cleaning without tools or manual cable disconnection.

Removing effect plug-in

Removing shutter-blade module

OPTIONAL: PATH LIMITATION

The M15 Profile is prepared to accommodate our mechanical path limiter, which allows the range of motion for pan (540°) and tilt (280°) to be individually restricted. New start and end points are defined using the path limiter (code ZU0029). Following a ‘Limit’ reset, the restricted range of motion is saved in the software and automatically applied during future resets.

Tilt movement limitation

Pan movement limitation

FOLLOW MODE

The M15 can be switched to ‘Follow Mode’ for manually tracking people or objects on stage. It is operated using a followspot handle mounted directly on the head cover. For added convenience, two handles can be combined with continuously adjustable counterweights and connected by an air deflector plate with an integrated clamping mechanism.

Prepared for Follow Mode

Follow Mode equipment

Gobos

The M15 Profile is equipped with pattern and effect gobos that have been specially developed for theatre and TV productions and enable impressive visual effects. The 12 heat-resistant gobos are distributed across two gobo wheels, each containing six rotating, positionable and interchangeable gobos. They are characterised by exceptionally high contrast and a dichroic coating, which offers optimum absorption and laser properties and enables the faithful reproduction of the finest patterns. The M15 Profile thus offers maximum creative freedom whilst delivering the highest optical quality.
